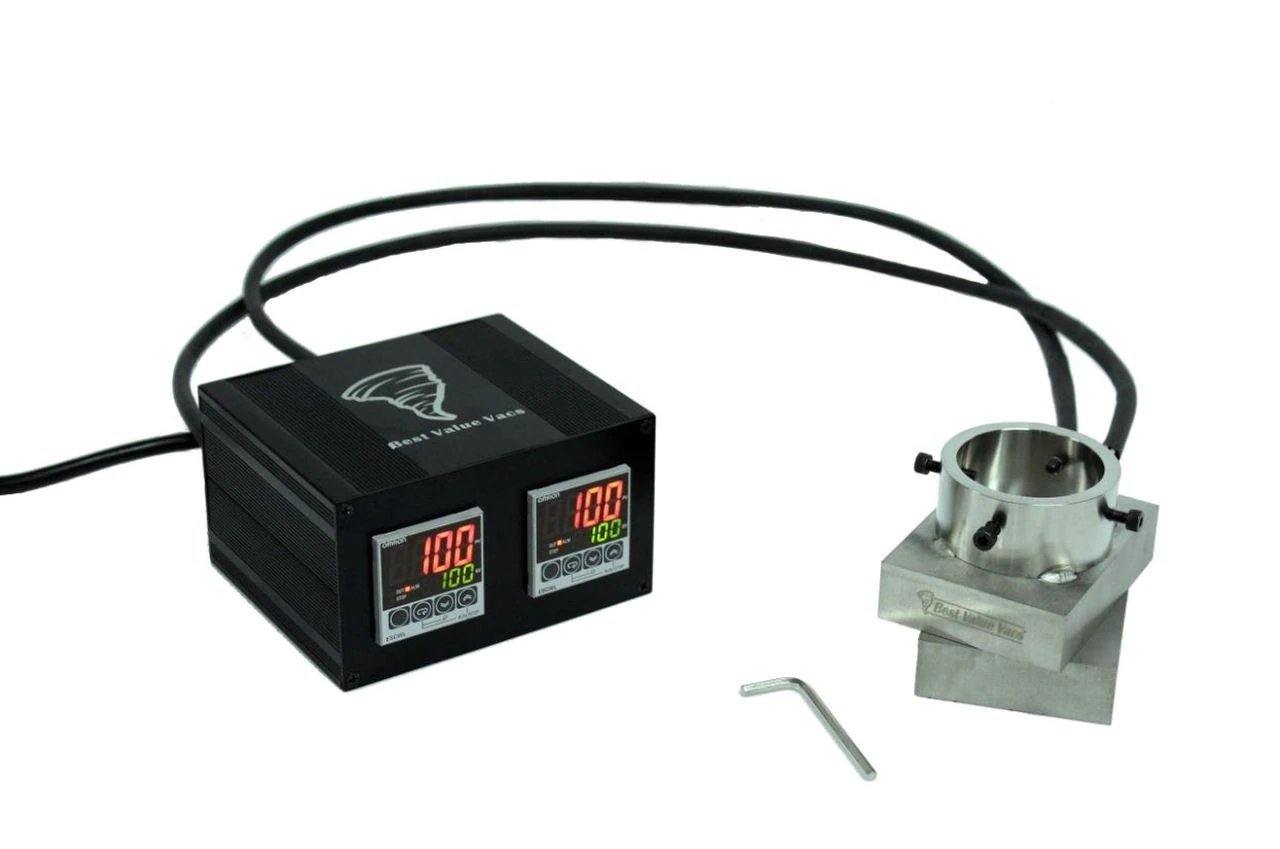

This is the 4" x 3" Rosin Plate Kit. Attach the plates to your own shop press using the hardware provided and convert your shop press into a commercial-grade rosin press! Custom rosin platens are essential for both the commercial producer and serious enthusiast alike. There's simply no better alternative- attach these high-quality, stainless-steel heating plates to a press to give yourself complete control over every element and variable in your process. We use dual heating rods, SS316, and the latest in thermodynamics technology to ensure a stable and uniform temperature across the entire plate's surface.

Specifications:

Dimensions: 3" x 4" x 1"h (plates)2.75"OD x 2.25"ID x 1"h (mounting collar)6" x 5" x 3.25" (controller)

Electrical Requirements: 120 V / 60 Hz / 4a

Heating Power: 400W, 200W per plate

Temperature Range: Ambient - 300F (150C)

Plate Material: SS316

Fits Mandrel Size: 0.78" - 2.25" (20mm - 57mm)

Maximum Force: 30 Tons (27,000 kg)

Heater Cable Length: 1m (3.28 ft)

Requirements: Shop Press Not Included

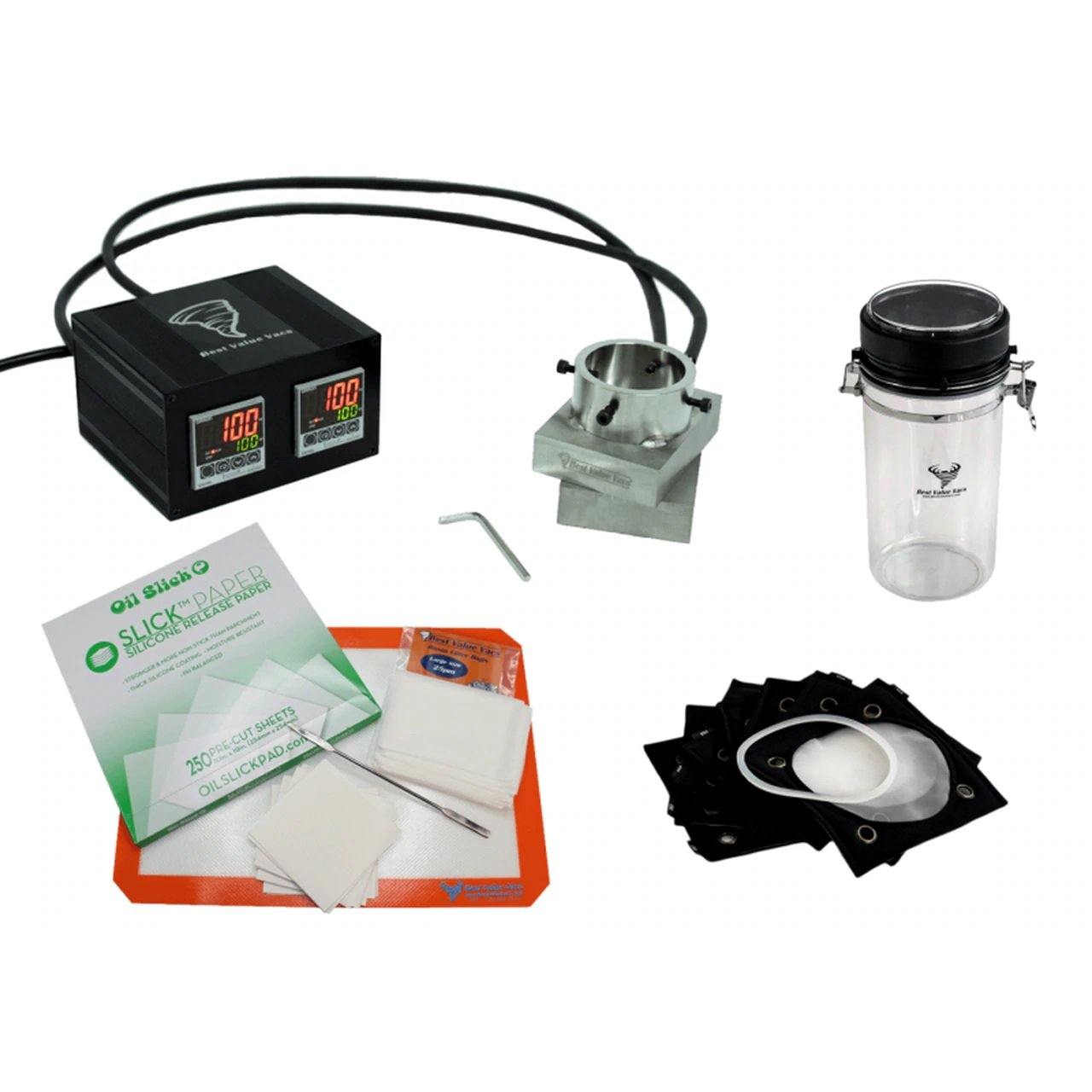

Included: Heating Plates, Controller, Power Cable, Mounting Screws, Allen Key, User Manual
